Samlex SEC-1215UL 12 Volt 15 Amp Battery Charger


Samlex Battery Chargers

Samlex battery chargers are microprocessor controlled, fully automatic electronic devices, which use switch-mode technology to change AC input voltage to DC output voltage at much faster rates than traditional ferroresonant type chargers, which allows for a much smaller transformer, and therefore less size and weight, and increased efficiency. The SEC-1215UL switch-mode charger also will function as a power supply with a battery in the system, and the proper dip switch setting. These units are user selectable for AC input voltage, battery type (wet, AGM, Gel), and battery with load (power supply operation). The 'battery with load' setting deactivates the boost mode, so the charger can function as a power supply without entering the elevated voltage level, which can damage a battery if applied for long periods. Proper maintenance of lead acid batteries keeps them healthy, and maximizes their life expectancy.

   Click image for larger picture, "Back" button to return

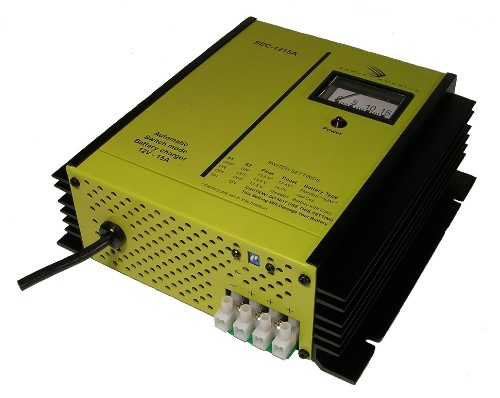

Samlex 12 Volt 15 Amp Charger top Samlex 12 Volt 15 Amp Charger front Samlex 12 Volt 15 Amp Charger dip switches Part#: SEC1215UL

Samlex 12 Volt 15 Amp
3 Stage Charger

$125


IF YOU ARE GOING TO DRIVE THIS CHARGER WITH A GENERATOR, YOU NEED 3 TIMES THE MAX AC DRAW LISTED FOR THE CHARGER AVAILABLE FROM THE GENERATOR. THIS HAS TO DO WITH THE SWITCHMODE NATURE OF THESE CHARGERS. CALL IF YOU NEED MORE INFO.


Specifications:  Features:
Dim (LxWxH):8.5 x 8.4 x 3.3 Advanced Switch-mode Design
Actual Weight:4.8 3 Stage Charge Profile
Ship Weight:6.0 Selectable Input Voltage
AC Input:120/230 VAC Selectable for GEL
AC Input:50/60 Hz Selectable - Battery with Load
Output Amps:15.0 Short Circuit Protection
Absorption:14.4 VDC (wet/AGM) Reverse Polarity Protection
Absorption:14.0 VDC (Gel) Thermal Protection
Absorption:13.5 VDC (deactivated) Over Current Protection
Float:13.5 VDC True Float Mode
Temperature:0 to 40C Ammeter
Approval:ETL/UL
Warranty:2 Years

Accessories you may like:



Charger cable set Charger alligator clip cable set

Ring Terminal Charger Cable Set
for Samlex SEC-1215A
$25

Alligator Clip Charger Cable Set
for Samlex SEC-1215A
$25


Samlex SEC-1215UL 12 Volt 15 Amp Battery Charger

This Samlex 15 amp battery charger is ideal for bulk charging 12 volt batteries (AGM, Gel, or wet) of 50 to 200 amp hour (ah), or as a floating charger (long term maintenance) for batteries 100 ah or more. I have quantities of this particular unit in service in Homeland Security devices. Typical applications include automotive, marine, RV, communications, military, robotics, etc. These are well built, reliable units, and used in quantity in commercial and military applications.
