Samlex SEC-1230UL 12 Volt 30 Amp Battery Charger


The SEC-1230UL Samlex charger is ideal for bulk charging 12 volt batteries or battery packs (AGM, Gel, or wet) of 90 to 245 amp hour (ah), or as a floating charger (long term maintenance) for batteries 100 ah or more. Also excellent in 12 volt applications with a constant amp load on the battery. This unit has proportional fan cooling. Typical applications include automotive, marine, RV, communications, military, robotics, lab testing 12 volt devices, etc. The SEC-1230UL chargers are well built, reliable units, and used in commercial and military applications.

   Click image for larger picture, "Back" button to return

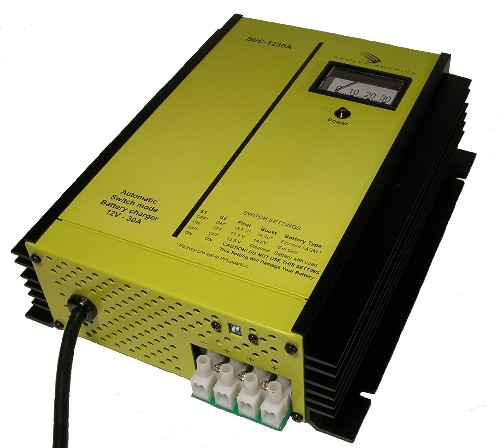

Samlex 12 Volt 30 Amp Charger top Samlex 12 Volt 30 Amp Charger front Samlex 12 Volt 30 Amp Charger back Part#: SEC-1230UL

Samlex 12 Volt 30 Amp
3 Stage Charger

$189 USD
IN STOCK




FREE GROUND SHIPPING ON THIS SAMLEX CHARGER. CALL TO UPGRADE TO AIR

CALL IF YOU INTEND TO DRIVE THIS CHARGER WITH AN INVERTER GENERATOR. THIS HAS TO DO WITH THE SWITCHMODE NATURE OF THESE CHARGERS. CALL IF YOU NEED MORE INFO.



Add to Cart
View Cart

Specifications:  Features:
Dim (LxWxH):10.7 x 8.4 x 3.3 Advanced Switch-mode Design
Actual Weight:6.0 3 Stage Charge Profile
Ship Weight:7.0 Selectable Input Voltage
AC Input:120/230 VAC Selectable for GEL
AC Input:50/60 Hz Selectable - Battery with Load
Output Amps:30.0 Short Circuit Protection
Absorption:14.4 VDC (wet/AGM) Reverse Polarity Protection
Absorption:14.0 VDC (Gel) Thermal Protection
Absorption:13.5 VDC (deactivated) Over Current Protection
Float:13.5 VDC Over Temperature Protection
Temperature:0 to 40C Proportional Fan Cooling
Approval:ETL/UL True Float
Warranty:2 Years Ammeter

Accessories you may like:



Charger cable set

8 Gauge Charger Cable Set
$27

Add to Cart

Samlex Battery Chargers

Samlex battery chargers are microprocessor controlled, fully automatic electronic devices, which use switch-mode technology to change AC input voltage to DC output voltage at much faster rates than traditional ferroresonant type chargers, which allows for a much smaller transformer, less size and weight, and increased efficiency. Samlex switch-mode chargers also will function as a power supply with a battery in the system, and the proper dip switch setting. These units are switch selectable for AC input voltage, battery type (wet, AGM, Gel), and power supply operation (battery with load). The 'battery with load' setting deactivates the boost mode, so the charger can function as a power supply without entering the elevated voltage level, which can damage a battery if applied for long periods. Proper maintenance of lead acid batteries keeps them healthy, and maximizes their life expectancy.




Frequently asked questions about battery charging



Be sure to check out our Tutorials!
