Samlex SEC-2415UL 24 Volt 15 Amp Battery Charger

This Samlex charger is ideal for bulk charging 24 volt batteries or battery systems (AGM or wet) of 50 amp hours (ah) or more, or as a floating charger (long term maintenance) for capacities of 100 ah or more. This unit has proportional fan cooling, a 3 stage charge profile, and is ROHS compliant. Typical applications include marine, RV, communications, military, robotics, etc., or any application for 24 volts in engineering or R & D where constant use or testing of the device is called for, with batteries in the system. These are well built, reliable units, and used in quantity in commercial and military applications.

   Click image for larger picture, "Back" button to return

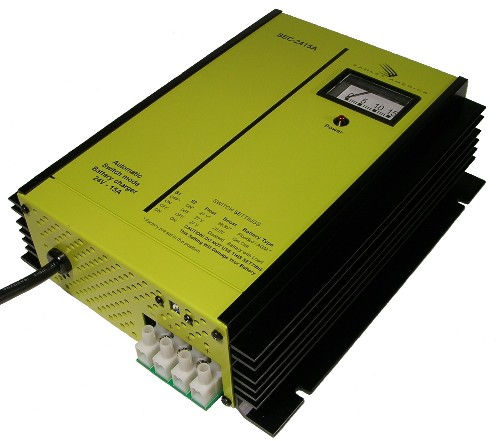

Samlex 24 Volt 15 Amp Charger top Samlex 24 Volt 15 Amp Charger front Samlex 24 Volt 15 Amp Charger back Part#: SEC-2415UL

Samlex 24 Volt 15 Amp
3 Stage Charger

$189 USD
IN STOCK


FREE GROUND SHIPPING ON THIS SAMLEX CHARGER. CALL TO UPGRADE TO AIR

CALL IF YOU INTEND TO DRIVE THIS CHARGER WITH AN INVERTER GENERATOR. CALL IF YOU NEED MORE INFO.



Add to Cart
View Cart


Specifications:  Features:
Dim (LxWxH):10.7 x 8.4 x 3.3 Advanced Switch-mode Design
Actual Weight:6.0 3 Stage Charge Profile
Ship Weight:7.0 Selectable Input Voltage
AC Input:120/230 VAC Selectable for GEL
AC Input:50/60 Hz Selectable - Battery with Load
Output Amps:15.0 Short Circuit Protection
Absorption:28.8 VDC (wet/AGM) Reverse Polarity Protection
Absorption:28.0 VDC (Gel) Thermal Protection
Absorption:27.0 VDC (deactivated) Over Current Protection
Float:27.0 VDC Over Temperature Protection
Temperature:0 to 40C Proportional Fan Cooling
Approval:ETL/UL True Float
Warranty:2 Years Ammeter

Accessories you may like:



Charger cable set

8 Gauge Charger Cable Set
$27

Add to Cart


Samlex Battery Chargers

Samlex battery chargers are microprocessor controlled, fully automatic electronic devices, which use switch-mode technology to change AC input voltage to DC output voltage at much faster rates than traditional ferroresonant type chargers, which allows for a much smaller transformer, less size and weight, and increased efficiency. Samlex switch-mode chargers also will function as a power supply with a battery in the system, and the proper dip switch setting. These units are switch selectable for AC input voltage, battery type (wet, AGM, Gel), and power supply operation (battery with load). The 'battery with load' setting deactivates the boost mode, so the charger can function as a power supply without entering the elevated voltage level, which can damage a battery if applied for long periods. Proper maintenance of lead acid batteries keeps them healthy, and maximizes their life expectancy.



Frequently asked questions about battery charging



Be sure to check out our Tutorials!
