Samlex SEC-2440UL 24 Volt 40 Amp Battery Charger


The Samlex SEC-2440UL charger is ideal for bulk charging 24 volt battery systems (AGM, Gel, or wet) of 150 amp hour (ah) or more, or as a floating charger (long term maintenance) for batteries 100 ah or more. This unit has proportional fan cooling, mute selection for silencing the fan, and temperature compensation. They can be set for true Gel batteries, 115 VAC or 230 VAC input, or to function as a power supply. Typical applications include automotive, marine, RV, communications, military, robotics, etc. These are industrial quality, reliable units, and excellent for commercial and military applications. We have been waiting for these higher amp units for some time. This unit requires a 30 amp circuit when used at 115 VAC. Replaces SEC-2440A.

   Click image for larger picture, "Back" button to return

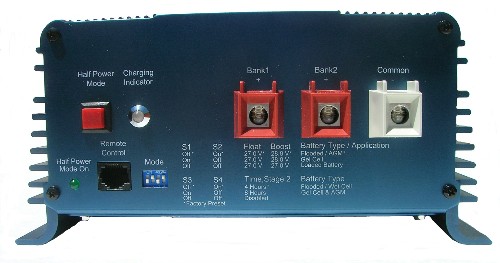

Samlex SEC2440UL 24 Volt 40 Amp Charger front Samlex SEC2440UL 24 Volt 40 Amp Charger back Samlex SEC2440UL 24 Volt 40 Amp Charger face Part#: SEC2440UL

Samlex 24 Volt 40 Amp
3 Stage Charger

$463



IF YOU ARE GOING TO DRIVE THIS CHARGER WITH A GENERATOR, YOU NEED 3 TIMES THE MAX AC DRAW LISTED FOR THE CHARGER AVAILABLE FROM THE GENERATOR. THIS HAS TO DO WITH THE SWITCHMODE NATURE OF THESE CHARGERS. CALL IF YOU NEED MORE INFO.


Specifications:  Features:
Dim (LxWxH):15 x 9 x 4.25 Advanced Switch-mode Design
Actual Weight:13.0 3 Stage Charge Profile
Ship Weight:14.0 Temperature Compensation
AC Input:120/230 VAC Selectable for GEL
AC Input:17.2A/8.7A Selectable AC Voltage Input
AC Input:50/60 Hz Selectable - Battery with Load
Output Amps:40.0 Short Circuit Protection
Absorption:28.8 VDC (wet/AGM) Reverse Polarity Protection
Absorption:28.0 VDC (Gel) Thermal Protection
Absorption:27.0 VDC (deactivated) Over Current Protection
Float:27.0 VDC Over Temperature Protection
Temperature:0 to 40C Proportional Fan Cooling
Approval:ETL/UL True Float
Warranty:2 Years

Accessories you may like:



Extension Charger cable set

RC-900 Remote Control
$27

8 Gauge Charger Cable Set
$27


Samlex Battery Chargers

Samlex battery chargers are microprocessor controlled, fully automatic electronic devices, which use switch-mode technology to change AC input voltage to DC output voltage at much faster rates than traditional ferroresonant type chargers, which allows for a much smaller transformer, less size and weight, and increased efficiency. Samlex switch-mode chargers also will function as a power supply with a battery in the system, and the proper dip switch setting. These units are switch selectable for AC input voltage, battery type (wet, AGM, Gel), and power supply operation (battery with load). The 'battery with load' setting deactivates the boost mode, so the charger can function as a power supply without entering the elevated voltage level, which can damage a battery if applied for long periods. Proper maintenance of lead acid batteries keeps them healthy, and maximizes their life expectancy.




Frequently asked questions about battery charging



Be sure to check out our Tutorials!
