Schauer JAC1212 12 Volt 12 Amp Battery Charger


The Japlar Schauer JAC1212 charger is a switch mode, 3 stage, universal input battery charger, which is ideal for bulk charging 12 volt batteries (AGM or wet) from about 50 amp hour (ah)to about 120 ah, or as a floating charger (long term maintenance) for batteries to 120 ah. This is a durable, aluminum cased unit with mounting flanges, with a 100% duty rating. Typical applications include automotive type batteries, lifts, use on deep cycle batteries. Replacement charger for Savage Brothers bowl lifts.

   Click image for larger picture, "Back" button to return

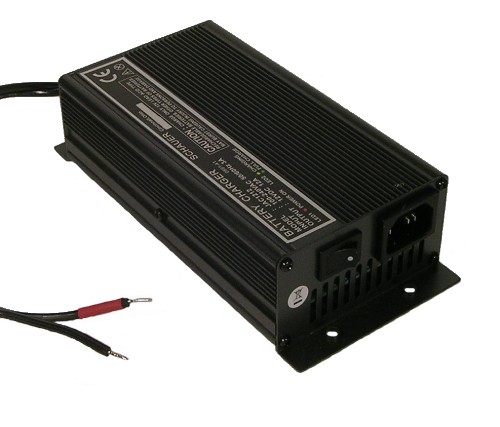

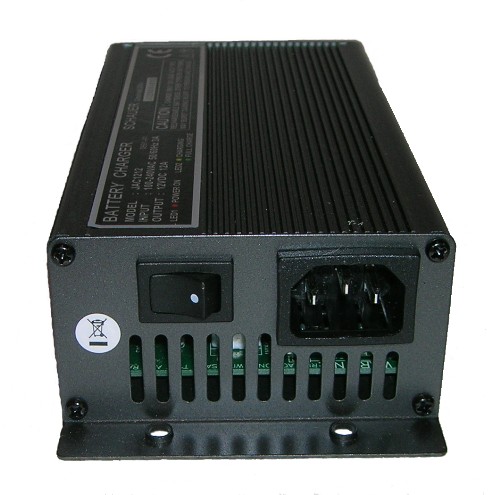

Schauer 12 Volt 12 Amp Charger top Schauer 12 Volt 12 Amp Charger front Schauer 12 Volt 12 Amp Charger rings Part#: JAC1212-R

Schauer 12 Volt 12 Amp
3 Stage Charger with Rings

$76


Schauer 12 Volt 12 Amp Charger top Schauer 12 Volt 12 Amp Charger front Schauer 12 Volt 12 Amp Charger clips Part#: JAC1212-C

Schauer 12 Volt 12 Amp
3 Stage Charger with Clips

$76



Specifications:  Features:
Dim (LxWxH):7.5 x 3.5 x 1.8 3 Stage Charging Profile
Actual Weight:1.8 Mode Indicating L.E.D.
Ship Weight:3.0 Demand Sensing
AC Input:115 VAC Reverse Polarity Protection
AC Input:50/60 Hz Over Voltage Protection
Output Amps:12.0 Short Circuit Protection
Absorption:14.7 VDC Thermal Protection
Float:13.5 VDC True Float Mode
Temperature:32 F to 120 F
Approval:CE, UL pending For AGM & Wet Lead Acid Batteries
Warranty:2 Years 100% Duty Cycle

Schauer Battery Chargers

Schauer battery chargers are microprocessor controlled, fully automatic electronic devices, which use switch-mode technology to change AC input voltage to DC output voltage at much faster rates than traditional ferroresonant type chargers, which allows for a much smaller transformer, and therefore less size and weight, and increased efficiency. Proper maintenance of lead acid batteries keeps them healthy, and increases their life expectancy.


Frequently asked questions about battery charging



Be sure to check out our Tutorials!
