Schauer JAC0224 24 Volt 2 Amp Battery Charger

This particular charger is ideal for bulk charging 24 volt batteries or battery packs (AGM or wet) up to 10 to 12 amp hour (ah), or as a floating charger (long term maintenance) for batteries up to about 120 ah. Typical applications include mobility use (bulk charging small 24 volt systems, or maintenance use for larger packs). This unit is very handy for travel, with the universal input (world-wide), as long as you are aware of the amperage limitation. These can be used on 24 volt riding scooters with sealed lead acid batteries (AGM) as well.
Not for use on true Gel batteries, or Gill aircraft batteries.

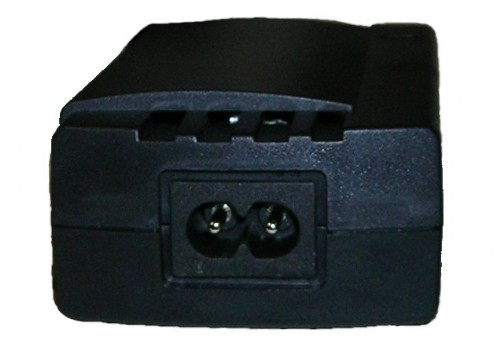

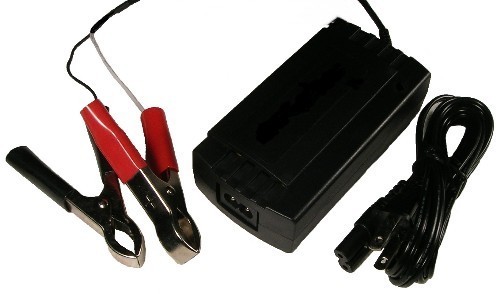

Click image for larger picture, "Back" button to return

Part#: JAC0224

Schauer 24 Volt 2 Amp
3 Stage Charger

$43

Out of stock until about June 14

Specifications:		Features:
Dim (LxWxH):	5.6 x 2.4 x 1.3	3 Stage Charging Profile
Actual Weight:	0.9	Mode Indicating L.E.D.
Ship Weight:	2.0	Demand Sensing
AC Input:	100-240 VAC	Reverse Polarity Protection
AC Input:	50/60 Hz	Over Voltage Protection
Output Amps:	2.0	Short Circuit Protection
Absorption:	29.2 VDC	Thermal Protection
Float:	27.0 VDC	True Float Mode
Temperature:	32 F to 120 F	Suitable for Sealed Lead Acid (AGM) Batteries
Approval:	CE, UL pending	Suitable for Wet Lead Acid Batteries
Warranty:	2 Years	Auto-sensing Universal Input

Schauer Battery Chargers

Schauer battery chargers are microprocessor controlled, fully automatic electronic devices, which use switch-mode technology to change AC input voltage to DC output voltage at much faster rates than traditional ferroresonant type chargers, which allows for a much smaller transformer, and therefore less size and weight, and increased efficiency. Proper maintenance of lead acid batteries keeps them healthy, and increases their life expectancy.
