Blower Project
NOTE: JUNE 2011. WE HAVE THE FIRST PRODUCTION UNITS AVAILABLE. SEE 'www.Mini-Blowers.com' .
The little blower project has been going on for about 17 years, since the original pattern and copyrighting
was done. The idea grew from all the blower cases Larry was polishing for Dyers Machine Service. Dyers
shipped 6-71, V6-71, and some 4-71 cases, end plates, and manifolds from Chicago out to Oregon, because of the
quality work done in Larry's shop. Eventually, some 8-71s showed up, both Blower Drive Service (BDS) and
Dyers own castings. Larry had done some blower pieces for Weiand, when he was in Los Angeles. As the son of
a hot rodder, and builder of cars himself, there just was the mystique that surrounded GMC style blowers for
Larry, and having blower cases and manifolds laying around all the time (sometimes 20 at a time) added to
it.
A foundry moved to Medford, Oregon, that specialized in lost foam casting, and an article about the work they
did prompted a visit. The foundry owner was a car guy as well, and said if Larry built a pattern, he would
work with it. An original GMC 6-71 still on the diesel engine was measured, and scaled down, to keep the
proportions correct. Well, a pattern was built, and attempts were made to do a lost wax casting, and a lost foam mold
was in process of being built. One sand cast prototype was done, before the foundry moved. Lessons learned
from the mold pulls and sand casting prompted revisions and finally a totally new pattern design, which cuts
casting thickness (and therefore weight), and was actually easier to incorporate the draft so the pattern will
pull from a mold or sand. There have been long periods of inactivity in this endeavor, but there are a ton
of hours involved.
The final pattern needs final sanding and a shellac finish. We have built flasks, and a propane fired burner
with adjustments and blower fan, to possibly try and cast some ourselves. We're looking into having a match
plate built and having some units cast, so we have the facility to do quantities at a time. The polishing and
assembly would be done here in our shop. We'd like to get this into production, as everyone (rodder) who has
seen the prototype said they wanted one. But, life happens, and match plates cost money. Hopefully we'll get
some more done this year. Meanwhile, enjoy the pictures.
Note: April - June 2011. The match plate is done, and we have the first production units. Kyle, Larry's son, took over the project and has these ready to go. We have a website set up for this project - www.Mini-Blowers.com. Kyle's cousin is doing the milling, drilling and tapping on his CNC machining center, and for now, we are doing the polished units here in our shop. It took a while to get the polishing lathe uncovered. Check them out on the site.

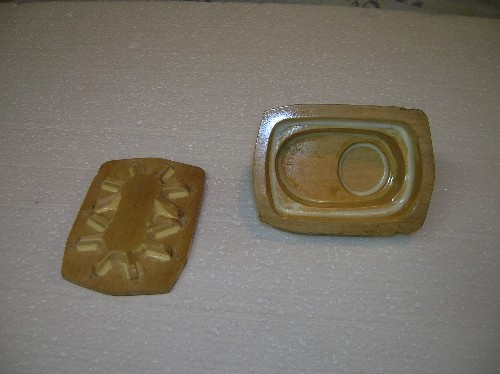

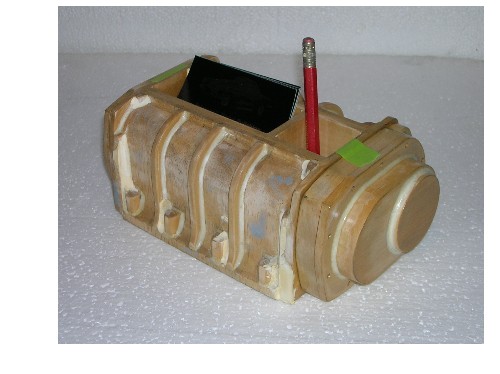

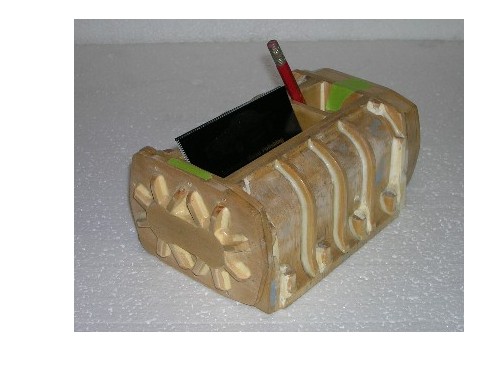

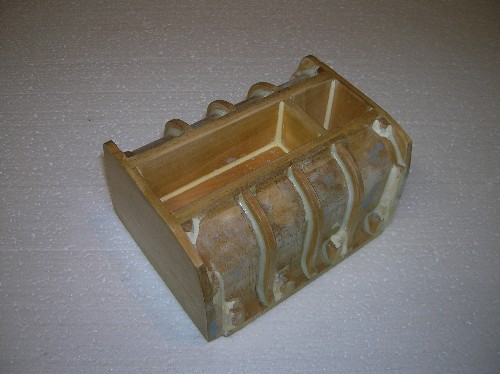

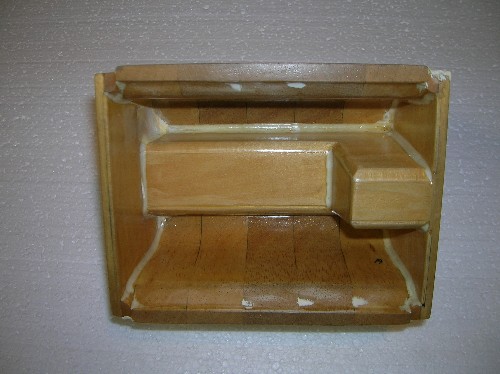

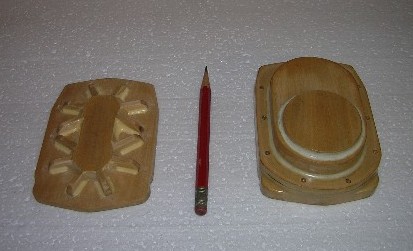

Patterns for the little aluminum blower casting

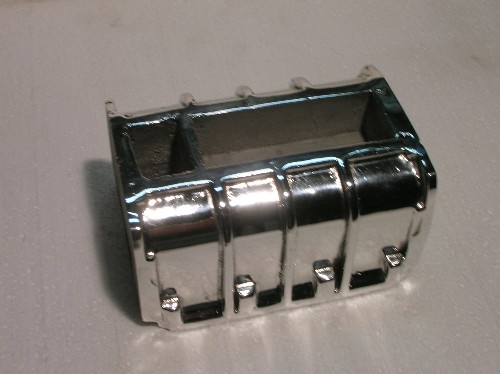

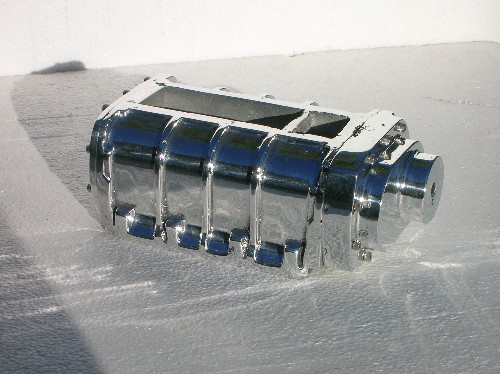

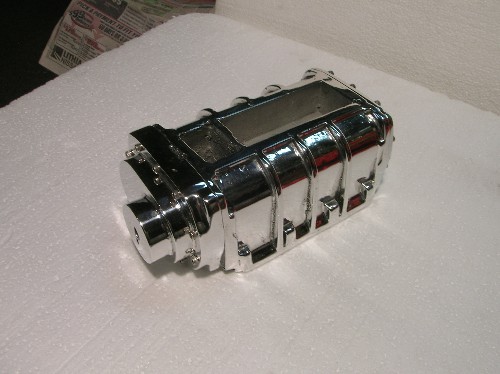

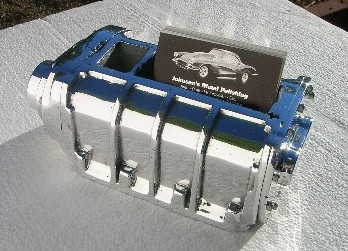

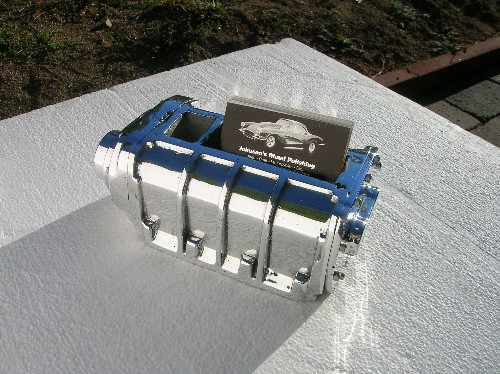

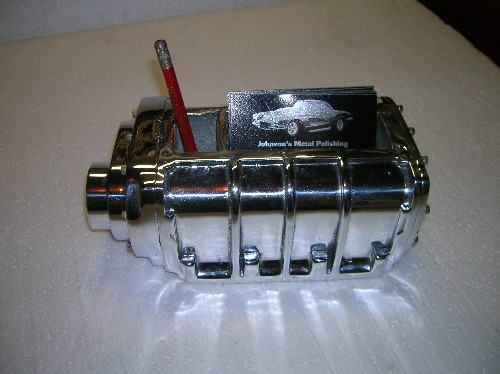

Prototype of the small blower casting. Not the final casting

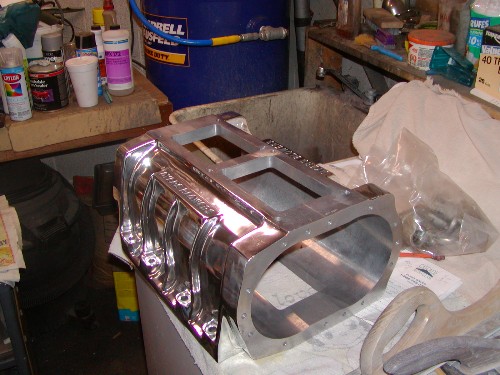

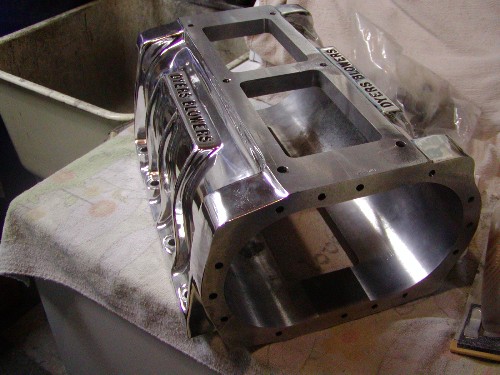

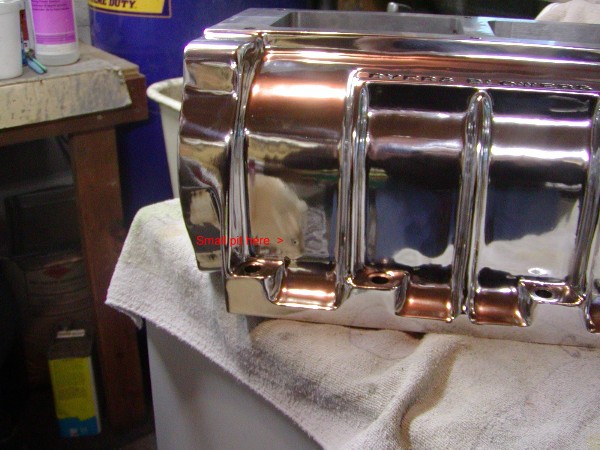

Polishing and inspecting prototype Dyers blower casting
